P46b

Price: 110 PLN netto

Description

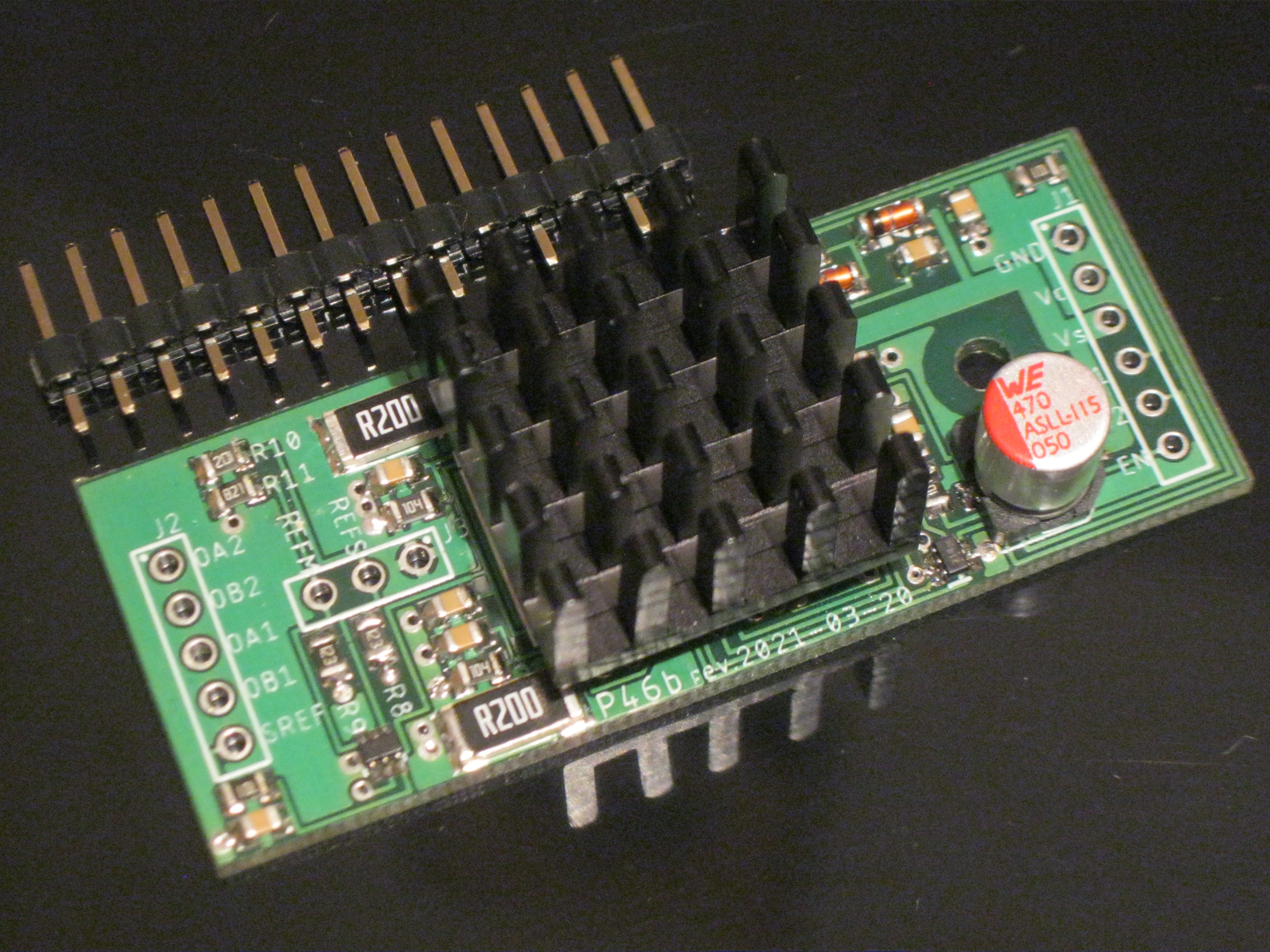

Expansion board with the L6207 stepper motor driver (or two DC motors). Intended for applications such as robotics, coordinate machines, 3D printers, and medical equipment. Driving with two phase-shifted clock signals allows restoring the rotor’s precise position after power loss without homing.

Features:

Supply voltage: 8–50V
Output current: 2.8A (max 5.6A)
Full step
Compatible with 5V and 3.3V logic
Interface: parallel (two phase-shifted clock signals)
Selectable reference current (two levels)
Overcurrent, short-circuit, and thermal protection
Undervoltage lockout

Note:

External cooling (fan) required.

Included:

Driver module
14-pin straight male header
